Valves, Pumps, Motors,Coolers

Extensive range of superior quality valves, including monoblock control valves, check valves, inline valves, relief valves, log splitter valves, etc.

  • TRACTOR FRONT LOADER VALVE- OPEN CENTRE- FOR OPEN CENTRE SYSTEMS

    TRACTOR FRONT LOADER VALVE- OPEN CENTRE- FOR OPEN CENTRE SYSTEMS

    €331.00 + vat

    2 section monoblock directional control valve with floating section suitable for hydraulic systems with fixed displacement pumps (open centre circuit) applications: front-end loader.

    • Manufactured in 2 sections with circuit in parallel
    • Nominal flow rate 80 l/min
    • Max working pressure 250 bar
    • Max return back pressure 10 bar
    • Including check valve for each section
    • Preset for CARRY-OVER
    • Working temperature -30°C ÷ max. 80°C
    • Max spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) is 3 ml/min
    • Weight 15,300 kg

    Read more about closed and open hydraulic systems

    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • Tractor Loader Kit With Load Sensing Valve- For Closed Centre Systems

    Tractor Loader Kit With Load Sensing Valve- For Closed Centre Systems

    Price range: €508.90 through €511.00 + vat

    TRACTOR LOADER KIT: 1 x 6 Port Diverter Valve 12 vdc , 1 x Tractor Front Loader Valve (load sensing), 1 x One Button Joystick, 2 x 2.5 mt or 3mt Joystick Cables (ball end)

    1 x 6 PORT DIVERTER VALVE
    • 1/2″ Ports
    • Nominal flow rate: 90 liter/min
    • Max. Pressure: 280 bar
    • Voltage: 12 VDC
    • Fluid temperature range: -10 oC … +80 oC
    • Working fluid: Mineral based hydraulic oil
    • Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
    • Filtration: 18/14 – ISO 4406
    • Body made of high quality cast iron alloy

    Fast spool switching without the use of separate drain line

    1 x TRACTOR FRONT LOADER VALVE- LOAD SENSING (for closed centre systems)
    • Manufactured in 2 sections with load sensing circuit
    • Nominal flow rate 80 l/min
    • Max working pressure 250 bar
    • Max return back pressure 10 bar
    • Including check valve for each section
    • Working temperature -30°C ÷ max. 80°C
    • Max spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) is 3 ml/min
    • Weight 15,300 kg
    + 1 x ONE BUTTON JOYSTICK
    + 2 x 2.5 MT OR 3MT JOYSTICK CABLES (BALL END)



    Read more about closed and open hydraulic systems



    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • TRACTOR LOADER KIT WITH OPEN CENTRE VALVE- FOR OPEN CENTRE SYSTEMS

    TRACTOR LOADER KIT WITH OPEN CENTRE VALVE- FOR OPEN CENTRE SYSTEMS

    Price range: €508.90 through €511.00 + vat

    TRACTOR LOADER KIT: 1 x 6 Port Diverter Valve 12 vdc , 1 x Tractor Front Loader Valve (open centre), 1 x One Button Joystick, 2 x 2.5mt or 3mt Joystick Cables (ball end)

    1 x 6 PORT DIVERTER VALVE
    • 1/2″ Ports
    • Nominal flow rate: 90 liter/min
    • Max. Pressure: 280 bar
    • Voltage: 12 VDC
    • Fluid temperature range: -10 oC … +80 oC
    • Working fluid: Mineral based hydraulic oil
    • Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
    • Filtration: 18/14 – ISO 4406
    • Body made of high quality cast iron alloy

    Fast spool switching without the use of separate drain line

    1 x TRACTOR FRONT LOADER VALVE- OPEN CENTRE
    • Manufactured in 2 sections with circuit in parallel
    • Nominal flow rate 80 l/min
    • Max working pressure 250 bar
    • Max return back pressure 10 bar
    • Including check valve for each section
    • Preset for CARRY-OVER
    • Working temperature -30°C ÷ max. 80°C
    • Max spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) is 3 ml/min
    + 1 x ONE BUTTON JOYSTICK
    + 2 x 2.5 MT OR 3MT JOYSTICK CABLES (BALL END)



    Read more about closed and open hydraulic systems



    Select optionsDone This product has multiple variants. The options may be chosen on the product page

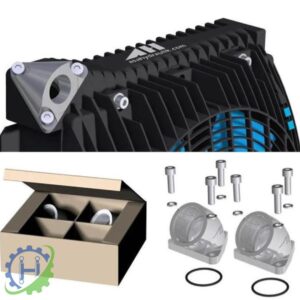

  • UNIVERSAL CONNECTOR 1.1/2" BSP

    UNIVERSAL CONNECTOR 1.1/2″ BSP

    €24.10 + vat

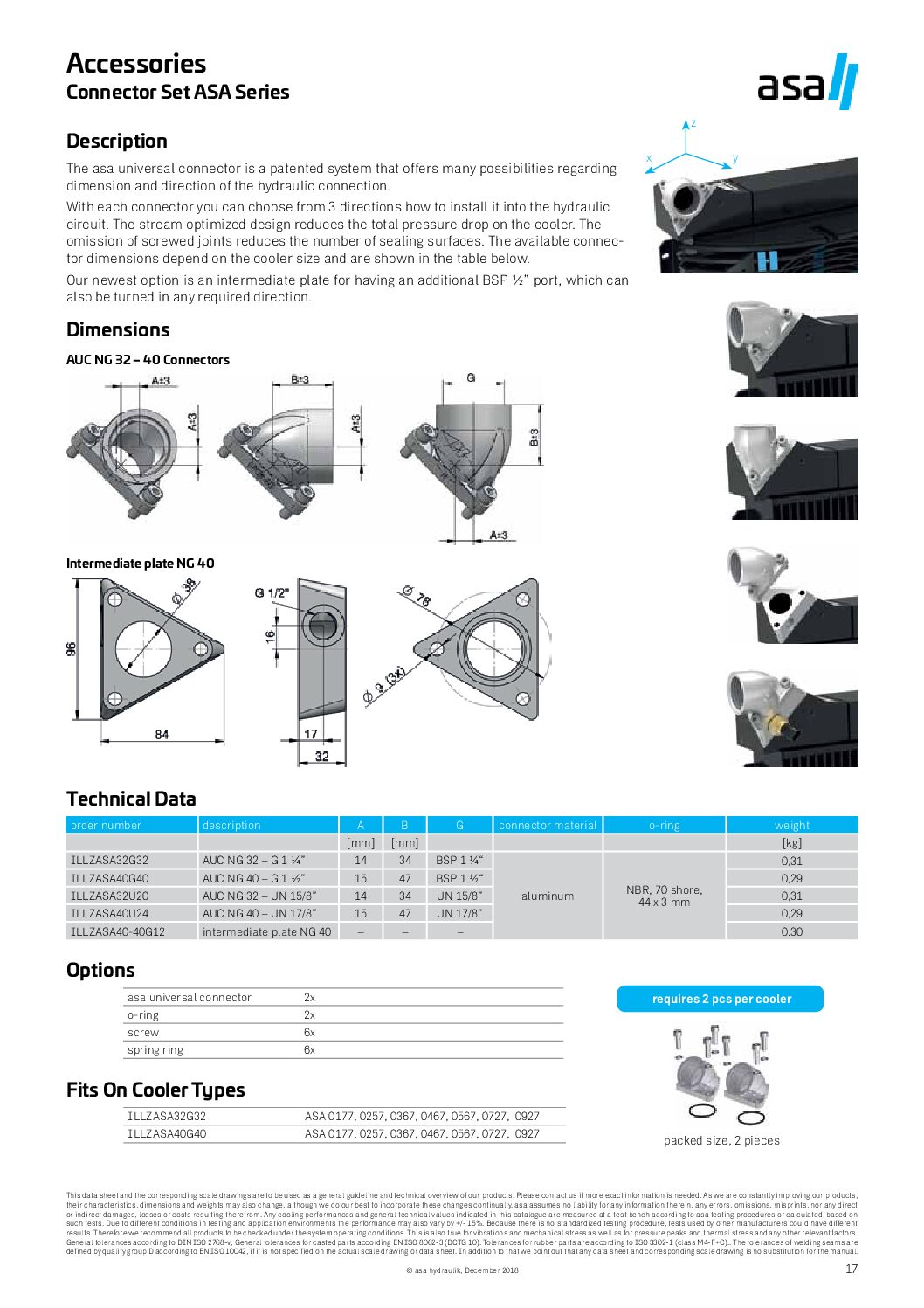

    The ASA universal connector is a patented system that offers many possibilities regarding
    dimension and direction of the hydraulic connection.

    With each connector you can choose from 3 directions how to install it into the hydraulic
    circuit

    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • VEQ 2 WAY 50/50 FLOW DIVIDER

    VEQ 2 WAY 50/50 FLOW DIVIDER

    Price range: €109.00 through €114.95 + vat

    Allows the division of inlet flow into two equals parts (50/50) and they unify it in the reverse direction independently of any pressure changes and flow.

    Body: cast iron – steel
    Internal parts: hardened and ground steel
    Seals: BUNA N standard and Teflon
    Poppet Type: By diameter combination. Minor leakage. Cylinder stroke error tolerance of 2%. Any synchronization differences are compensated by the terminal position of the stroke.
    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • Image of 2, gear 1 Vivoil pumps

    Vivoil Group 1 Fixed Displacement Gear Pumps

    Price range: €97.00 through €115.00 + vat
    • Flange: Ø25.4
    • Shaft-F-T1.8 taper Shaft
    • Inlet-B-3/8″
    • Outlet-B-3/8″
    • Ports: BSPP

    Manufactured by Vivoil Italy.

    single pump rotation change tutorial video.
    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • VIVOIL GROUP 2 ALUMINIUM HYDRAULIC REVERSIBLE PUMP

    Vivoil Group 2 Fixed Displacement Gear Pumps

    Price range: €120.00 through €140.00 + vat
    • Shaft: CO001 – Tapered 1:8 – ø17.4 – M12x1.5 – key thk.4
    • Flange: Ø36.5
    • Standard European right rotation, reversible – see video for instructions
    • Ports: BSPP

    Manufactured by Vivoil Italy.

    Directions on changing the rotation:

    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • VIVOIL GROUP 2 REVERSIBLE MOTOR- XV SERIES

    Vivoil Group 2 Reversible motor – XV Series

    €140.00 + vat
    • Series: XV
    • Group: 2
    • Flange: ø 36.5 Standard European reversible rotation
    • Category: M- reversible motor
    • Shaft: CO001- tapered 1:8 ø17.4- M12 X 1.5- key thk.4
    • Internal drainage
    • 3/4″ BSP ports

    Manufactured by Vivoil Italy.



    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • VIVOIL GROUP 3 REVERSIBLE PUMP WITH CAST IRON FLANGE

    Vivoil Group 3 Fixed Displacement Gear Pumps

    Price range: €257.00 through €280.00 + vat
    • Flange: Ø50.8
    • Shaft: CO001 – Tapered 1:8 – ø22 – key thk.4
    • Standard European right rotation,  reversible – see video for instructions
    • Ports: BSPP

    Manufactured by Vivoil Italy.

    single pump rotation change tutorial video.
    Select optionsDone This product has multiple variants. The options may be chosen on the product page
